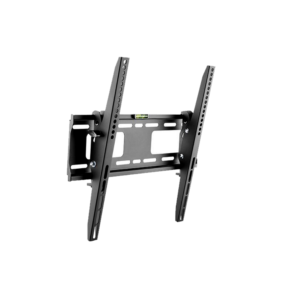

Easy to use and install, the popular model PLB-43 is designed to fit any 37”-70″ curved & flat panel TVs up to 75kg’s. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Integrated bubble level is included for easy installation alignment.
Technical Specifications:
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet, Bracket Arm THK=2mm cold-rolled sheet (Wall Plate THK=0.079″ cold-rolled sheet, Bracket Arm THK=0.079″ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 46 x 850 x 440mm
Fit Screen Size: 37″ – 70″
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400, 800 x 400
Weight Capacity: 75kg
Strength Tested: 4 Times Approved
Profile: 46mm
Tilt Range: 0°～-10°
Installation: Double Stud (406mm/450mm/600mm), Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate)
Certification: GS UL
